SASSO 40 round

recessed 2 lamps

New colour temperature Efficiency upgrade

Quickinfo

2700 K, 3000 K, 3500 K, 4000 K
CRI ≥ 90 / 3 SDCM
UGR ≤ 10, UGR ≤ 13, UGR ≤ 16, UGR ≤ 19
up to 121 lm/W
L85 / 50000 h, L90 / 50000 h
DALI-2, non DIM
front IP20, IP40, IP44, back IP20

Colour

gold

white

black

matt silver

Mounting set

traffic white

jet black

Products and codes

Discover family

Simple drawing

Light distribution

Downloads & links

Product data & specification documents

CataloguePage(s)

DWG - 2D

Download all

Aggregated downloads

IES
LDT
ROLF

ULD
Revit BIM data
EPD

Description

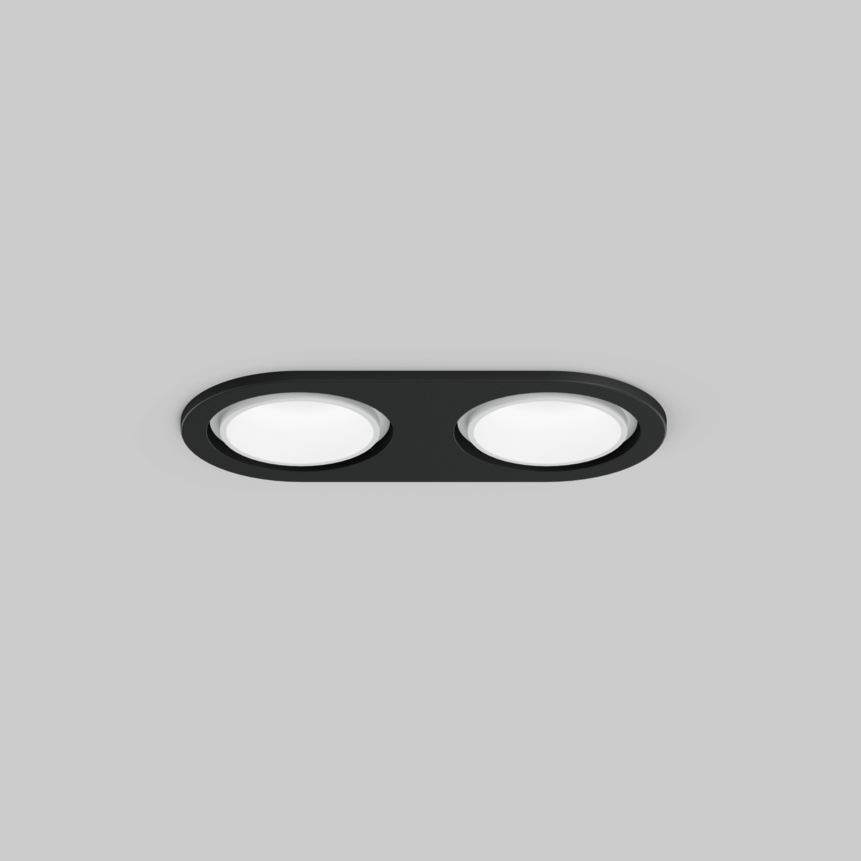

Round recessed spotlight; installation without tools in mounting set with ball catch system; surface lacquered; with trim; double lamps; choice of adjustable / fixed symmetric or asymmetric radiation characteristic; variants with symmetric radiation characteristic: precise radiation characteristic due to high quality lens system; variants with asymmetric radiation characteristic: high quality reflector with micro-faceted, aluminum-vaporised surface; COB (Chip on Board) technology for maximum efficiency (ADJUSTABLE and DOWNLIGHT); no multiple shadows; efficient LEDs with very good colour rendering

rotatable 360°, tiltable 30°

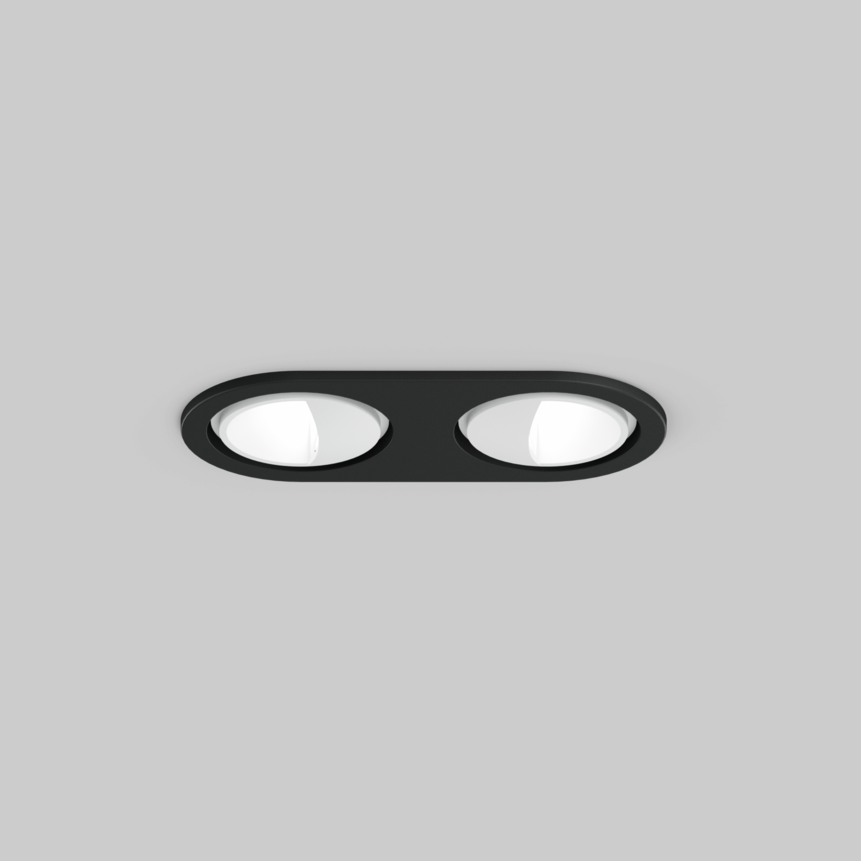

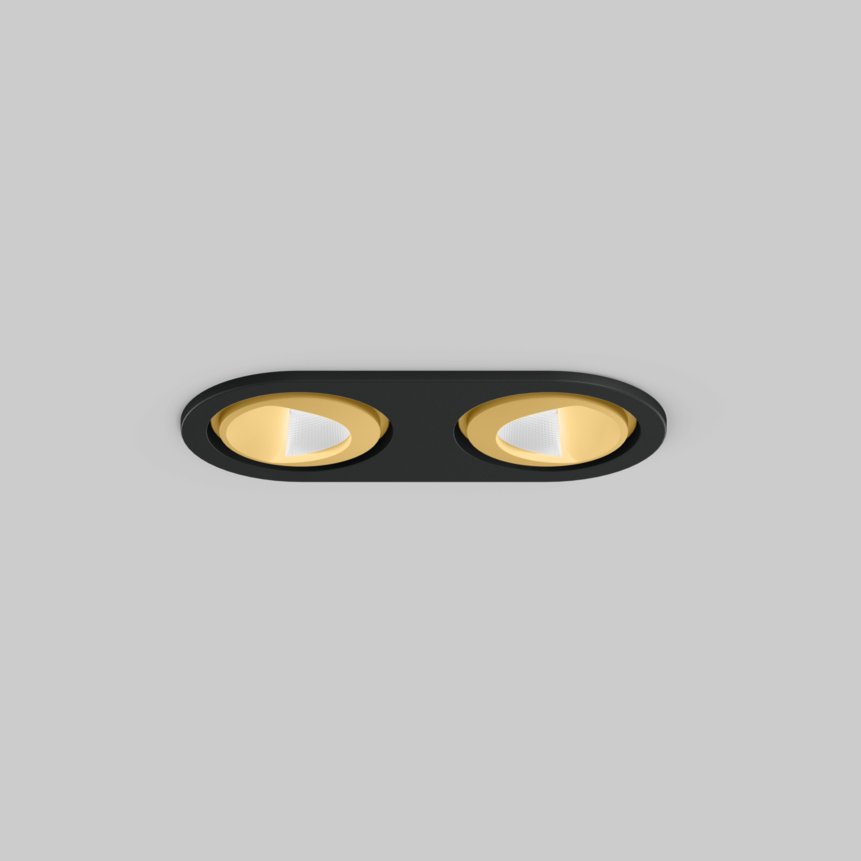

wallwasher and wallwasher floor inset

glare control (UGR ≤ 16)

easy mounting
no visible screws

Products and codes

Filter

Colour

gold

white

black

matt silver

Mounting set

traffic white

jet black

SASSO 40 round adjustable trim 2 lamps

Status

Article number(s)

Type

Dimming

black, jet black, 46° flood, 2700 K, fixture 5.1 W, 70 lm/W

non DIM

black, jet black, 46° flood, 2700 K, fixture 5.1 W, 70 lm/W

DALI-2

black, jet black, 25° medium, 2700 K, fixture 5.1 W, 73 lm/W

non DIM

black, jet black, 25° medium, 2700 K, fixture 5.1 W, 73 lm/W

DALI-2

black, jet black, 14° spot, 2700 K, fixture 5.1 W, 71 lm/W

non DIM

black, jet black, 14° spot, 2700 K, fixture 5.1 W, 71 lm/W

DALI-2

black, jet black, 46° flood, 3000 K, fixture 5.1 W, 75 lm/W

non DIM

black, jet black, 46° flood, 3000 K, fixture 5.1 W, 75 lm/W

DALI-2

black, jet black, 25° medium, 3000 K, fixture 5.1 W, 78 lm/W

non DIM

black, jet black, 25° medium, 3000 K, fixture 5.1 W, 78 lm/W

DALI-2

black, jet black, 14° spot, 3000 K, fixture 5.1 W, 76 lm/W

non DIM

black, jet black, 14° spot, 3000 K, fixture 5.1 W, 76 lm/W

DALI-2

black, jet black, 46° flood, 4000 K, fixture 5.1 W, 75 lm/W

non DIM

black, jet black, 46° flood, 4000 K, fixture 5.1 W, 75 lm/W

DALI-2

black, jet black, 25° medium, 4000 K, fixture 5.1 W, 78 lm/W

non DIM

black, jet black, 25° medium, 4000 K, fixture 5.1 W, 78 lm/W

DALI-2

black, jet black, 14° spot, 4000 K, fixture 5.1 W, 76 lm/W

non DIM

black, jet black, 14° spot, 4000 K, fixture 5.1 W, 76 lm/W

DALI-2

SASSO 40 round adjustable trim 2 lamps

Status

Article number(s)

Type

Dimming

gold, jet black, 46° flood, 2700 K, fixture 5.1 W, 74 lm/W

non DIM

gold, jet black, 46° flood, 2700 K, fixture 5.1 W, 74 lm/W

DALI-2

gold, jet black, 25° medium, 2700 K, fixture 5.1 W, 75 lm/W

non DIM

gold, jet black, 25° medium, 2700 K, fixture 5.1 W, 75 lm/W

DALI-2

gold, jet black, 14° spot, 2700 K, fixture 5.1 W, 73 lm/W

non DIM

gold, jet black, 14° spot, 2700 K, fixture 5.1 W, 73 lm/W

DALI-2

gold, jet black, 46° flood, 3000 K, fixture 5.1 W, 79 lm/W

non DIM

gold, jet black, 46° flood, 3000 K, fixture 5.1 W, 79 lm/W

DALI-2

gold, jet black, 25° medium, 3000 K, fixture 5.1 W, 81 lm/W

non DIM

gold, jet black, 25° medium, 3000 K, fixture 5.1 W, 81 lm/W

DALI-2

gold, jet black, 14° spot, 3000 K, fixture 5.1 W, 78 lm/W

non DIM

gold, jet black, 14° spot, 3000 K, fixture 5.1 W, 78 lm/W

DALI-2

gold, jet black, 46° flood, 4000 K, fixture 5.1 W, 79 lm/W

non DIM

gold, jet black, 46° flood, 4000 K, fixture 5.1 W, 79 lm/W

DALI-2

gold, jet black, 25° medium, 4000 K, fixture 5.1 W, 81 lm/W

non DIM

gold, jet black, 25° medium, 4000 K, fixture 5.1 W, 81 lm/W

DALI-2

gold, jet black, 14° spot, 4000 K, fixture 5.1 W, 78 lm/W

non DIM

gold, jet black, 14° spot, 4000 K, fixture 5.1 W, 78 lm/W

DALI-2

SASSO 40 round adjustable trim 2 lamps

Status

Article number(s)

Type

Dimming

matt silver, jet black, 46° flood, 2700 K, fixture 5.1 W, 74 lm/W

non DIM

matt silver, jet black, 46° flood, 2700 K, fixture 5.1 W, 74 lm/W

DALI-2

matt silver, jet black, 25° medium, 2700 K, fixture 5.1 W, 76 lm/W

non DIM

matt silver, jet black, 25° medium, 2700 K, fixture 5.1 W, 76 lm/W

DALI-2

matt silver, jet black, 14° spot, 2700 K, fixture 5.1 W, 74 lm/W

non DIM

matt silver, jet black, 14° spot, 2700 K, fixture 5.1 W, 74 lm/W

DALI-2

matt silver, jet black, 46° flood, 3000 K, fixture 5.1 W, 80 lm/W

non DIM

matt silver, jet black, 46° flood, 3000 K, fixture 5.1 W, 80 lm/W

DALI-2

matt silver, jet black, 25° medium, 3000 K, fixture 5.1 W, 81 lm/W

non DIM

matt silver, jet black, 25° medium, 3000 K, fixture 5.1 W, 81 lm/W

DALI-2

matt silver, jet black, 14° spot, 3000 K, fixture 5.1 W, 79 lm/W

non DIM

matt silver, jet black, 14° spot, 3000 K, fixture 5.1 W, 79 lm/W

DALI-2

matt silver, jet black, 46° flood, 4000 K, fixture 5.1 W, 80 lm/W

non DIM

matt silver, jet black, 46° flood, 4000 K, fixture 5.1 W, 80 lm/W

DALI-2

matt silver, jet black, 25° medium, 4000 K, fixture 5.1 W, 81 lm/W

non DIM

matt silver, jet black, 25° medium, 4000 K, fixture 5.1 W, 81 lm/W

DALI-2

matt silver, jet black, 14° spot, 4000 K, fixture 5.1 W, 79 lm/W

non DIM

matt silver, jet black, 14° spot, 4000 K, fixture 5.1 W, 79 lm/W

DALI-2

SASSO 40 round adjustable trim 2 lamps

Status

Article number(s)

Type

Dimming

white, jet black, 46° flood, 2700 K, fixture 5.1 W, 75 lm/W

non DIM

white, jet black, 46° flood, 2700 K, fixture 5.1 W, 75 lm/W

DALI-2

white, jet black, 25° medium, 2700 K, fixture 5.1 W, 77 lm/W

non DIM

white, jet black, 25° medium, 2700 K, fixture 5.1 W, 77 lm/W

DALI-2

white, jet black, 14° spot, 2700 K, fixture 5.1 W, 75 lm/W

non DIM

white, jet black, 14° spot, 2700 K, fixture 5.1 W, 75 lm/W

DALI-2

white, jet black, 46° flood, 3000 K, fixture 5.1 W, 81 lm/W

non DIM

white, jet black, 46° flood, 3000 K, fixture 5.1 W, 81 lm/W

DALI-2

white, jet black, 25° medium, 3000 K, fixture 5.1 W, 83 lm/W

non DIM

white, jet black, 25° medium, 3000 K, fixture 5.1 W, 83 lm/W

DALI-2

white, jet black, 14° spot, 3000 K, fixture 5.1 W, 80 lm/W

non DIM

white, jet black, 14° spot, 3000 K, fixture 5.1 W, 80 lm/W

DALI-2

white, jet black, 46° flood, 4000 K, fixture 5.1 W, 81 lm/W

non DIM

white, jet black, 46° flood, 4000 K, fixture 5.1 W, 81 lm/W

DALI-2

white, jet black, 25° medium, 4000 K, fixture 5.1 W, 83 lm/W

non DIM

white, jet black, 25° medium, 4000 K, fixture 5.1 W, 83 lm/W

DALI-2

white, jet black, 14° spot, 4000 K, fixture 5.1 W, 80 lm/W

non DIM

white, jet black, 14° spot, 4000 K, fixture 5.1 W, 80 lm/W

DALI-2

SASSO 40 round adjustable trim 2 lamps

Status

Article number(s)

Type

Dimming

black, traffic white, 46° flood, 2700 K, fixture 5.1 W, 70 lm/W

non DIM

black, traffic white, 46° flood, 2700 K, fixture 5.1 W, 70 lm/W

DALI-2

black, traffic white, 25° medium, 2700 K, fixture 5.1 W, 73 lm/W

non DIM

black, traffic white, 25° medium, 2700 K, fixture 5.1 W, 73 lm/W

DALI-2

black, traffic white, 14° spot, 2700 K, fixture 5.1 W, 71 lm/W

non DIM

black, traffic white, 14° spot, 2700 K, fixture 5.1 W, 71 lm/W

DALI-2

black, traffic white, 46° flood, 3000 K, fixture 5.1 W, 75 lm/W

non DIM

black, traffic white, 46° flood, 3000 K, fixture 5.1 W, 75 lm/W

DALI-2

black, traffic white, 25° medium, 3000 K, fixture 5.1 W, 78 lm/W

non DIM

black, traffic white, 25° medium, 3000 K, fixture 5.1 W, 78 lm/W

DALI-2

black, traffic white, 14° spot, 3000 K, fixture 5.1 W, 76 lm/W

non DIM

black, traffic white, 14° spot, 3000 K, fixture 5.1 W, 76 lm/W

DALI-2

black, traffic white, 46° flood, 4000 K, fixture 5.1 W, 75 lm/W

non DIM

black, traffic white, 46° flood, 4000 K, fixture 5.1 W, 75 lm/W

DALI-2

black, traffic white, 25° medium, 4000 K, fixture 5.1 W, 78 lm/W

non DIM

black, traffic white, 25° medium, 4000 K, fixture 5.1 W, 78 lm/W

DALI-2

black, traffic white, 14° spot, 4000 K, fixture 5.1 W, 76 lm/W

non DIM

black, traffic white, 14° spot, 4000 K, fixture 5.1 W, 76 lm/W

DALI-2

SASSO 40 round adjustable trim 2 lamps

Status

Article number(s)

Type

Dimming

gold, traffic white, 46° flood, 2700 K, fixture 5.1 W, 74 lm/W

non DIM

gold, traffic white, 46° flood, 2700 K, fixture 5.1 W, 74 lm/W

DALI-2

gold, traffic white, 25° medium, 2700 K, fixture 5.1 W, 75 lm/W

non DIM

gold, traffic white, 25° medium, 2700 K, fixture 5.1 W, 75 lm/W

DALI-2

gold, traffic white, 14° spot, 2700 K, fixture 5.1 W, 73 lm/W

non DIM

gold, traffic white, 14° spot, 2700 K, fixture 5.1 W, 73 lm/W

DALI-2

gold, traffic white, 46° flood, 3000 K, fixture 5.1 W, 79 lm/W

non DIM

gold, traffic white, 46° flood, 3000 K, fixture 5.1 W, 79 lm/W

DALI-2

gold, traffic white, 25° medium, 3000 K, fixture 5.1 W, 81 lm/W

non DIM

gold, traffic white, 25° medium, 3000 K, fixture 5.1 W, 81 lm/W

DALI-2

gold, traffic white, 14° spot, 3000 K, fixture 5.1 W, 78 lm/W

non DIM

gold, traffic white, 14° spot, 3000 K, fixture 5.1 W, 78 lm/W

DALI-2

gold, traffic white, 46° flood, 4000 K, fixture 5.1 W, 79 lm/W

non DIM

gold, traffic white, 46° flood, 4000 K, fixture 5.1 W, 79 lm/W

DALI-2

gold, traffic white, 25° medium, 4000 K, fixture 5.1 W, 81 lm/W

non DIM

gold, traffic white, 25° medium, 4000 K, fixture 5.1 W, 81 lm/W

DALI-2

gold, traffic white, 14° spot, 4000 K, fixture 5.1 W, 78 lm/W

non DIM

gold, traffic white, 14° spot, 4000 K, fixture 5.1 W, 78 lm/W

DALI-2

SASSO 40 round adjustable trim 2 lamps

Status

Article number(s)

Type

Dimming

matt silver, traffic white, 46° flood, 2700 K, fixture 5.1 W, 74 lm/W

non DIM

matt silver, traffic white, 46° flood, 2700 K, fixture 5.1 W, 74 lm/W

DALI-2

matt silver, traffic white, 25° medium, 2700 K, fixture 5.1 W, 76 lm/W

non DIM

matt silver, traffic white, 25° medium, 2700 K, fixture 5.1 W, 76 lm/W

DALI-2

matt silver, traffic white, 14° spot, 2700 K, fixture 5.1 W, 74 lm/W

non DIM

matt silver, traffic white, 14° spot, 2700 K, fixture 5.1 W, 74 lm/W

DALI-2

matt silver, traffic white, 46° flood, 3000 K, fixture 5.1 W, 80 lm/W

non DIM

matt silver, traffic white, 46° flood, 3000 K, fixture 5.1 W, 80 lm/W

DALI-2

matt silver, traffic white, 25° medium, 3000 K, fixture 5.1 W, 81 lm/W

non DIM

matt silver, traffic white, 25° medium, 3000 K, fixture 5.1 W, 81 lm/W

DALI-2

matt silver, traffic white, 14° spot, 3000 K, fixture 5.1 W, 79 lm/W

non DIM

matt silver, traffic white, 14° spot, 3000 K, fixture 5.1 W, 79 lm/W

DALI-2

matt silver, traffic white, 46° flood, 4000 K, fixture 5.1 W, 80 lm/W

non DIM

matt silver, traffic white, 46° flood, 4000 K, fixture 5.1 W, 80 lm/W

DALI-2

matt silver, traffic white, 25° medium, 4000 K, fixture 5.1 W, 81 lm/W

non DIM

matt silver, traffic white, 25° medium, 4000 K, fixture 5.1 W, 81 lm/W

DALI-2

matt silver, traffic white, 14° spot, 4000 K, fixture 5.1 W, 79 lm/W

non DIM

matt silver, traffic white, 14° spot, 4000 K, fixture 5.1 W, 79 lm/W

DALI-2

SASSO 40 round adjustable trim 2 lamps

Status

Article number(s)

Type

Dimming

white, traffic white, 46° flood, 2700 K, fixture 5.1 W, 75 lm/W

non DIM

white, traffic white, 46° flood, 2700 K, fixture 5.1 W, 75 lm/W

DALI-2

white, traffic white, 25° medium, 2700 K, fixture 5.1 W, 77 lm/W

non DIM

white, traffic white, 25° medium, 2700 K, fixture 5.1 W, 77 lm/W

DALI-2

white, traffic white, 14° spot, 2700 K, fixture 5.1 W, 75 lm/W

non DIM

white, traffic white, 14° spot, 2700 K, fixture 5.1 W, 75 lm/W

DALI-2

white, traffic white, 46° flood, 3000 K, fixture 5.1 W, 81 lm/W

non DIM

white, traffic white, 46° flood, 3000 K, fixture 5.1 W, 81 lm/W

DALI-2

white, traffic white, 25° medium, 3000 K, fixture 5.1 W, 83 lm/W

non DIM

white, traffic white, 25° medium, 3000 K, fixture 5.1 W, 83 lm/W

DALI-2

white, traffic white, 14° spot, 3000 K, fixture 5.1 W, 80 lm/W

non DIM

white, traffic white, 14° spot, 3000 K, fixture 5.1 W, 80 lm/W

DALI-2

white, traffic white, 46° flood, 4000 K, fixture 5.1 W, 81 lm/W

non DIM

white, traffic white, 46° flood, 4000 K, fixture 5.1 W, 81 lm/W

DALI-2

white, traffic white, 25° medium, 4000 K, fixture 5.1 W, 83 lm/W

non DIM

white, traffic white, 25° medium, 4000 K, fixture 5.1 W, 83 lm/W

DALI-2

white, traffic white, 14° spot, 4000 K, fixture 5.1 W, 80 lm/W

non DIM

white, traffic white, 14° spot, 4000 K, fixture 5.1 W, 80 lm/W

DALI-2

SASSO 40 round downlight trim 2 lamps

Status

Article number(s)

Type

Dimming

black, jet black, 46° flood, 2700 K, fixture 5.1 W, 71 lm/W

non DIM

black, jet black, 46° flood, 2700 K, fixture 5.1 W, 71 lm/W

DALI-2

black, jet black, 25° medium, 2700 K, fixture 5.1 W, 72 lm/W

non DIM

black, jet black, 25° medium, 2700 K, fixture 5.1 W, 72 lm/W

DALI-2

black, jet black, 15° spot, 2700 K, fixture 5.1 W, 70 lm/W

non DIM

black, jet black, 15° spot, 2700 K, fixture 5.1 W, 70 lm/W

DALI-2

black, jet black, 46° flood, 3000 K, fixture 5.1 W, 76 lm/W

non DIM

black, jet black, 46° flood, 3000 K, fixture 5.1 W, 76 lm/W

DALI-2

black, jet black, 25° medium, 3000 K, fixture 5.1 W, 77 lm/W

non DIM

black, jet black, 25° medium, 3000 K, fixture 5.1 W, 77 lm/W

DALI-2

black, jet black, 15° spot, 3000 K, fixture 5.1 W, 76 lm/W

non DIM

black, jet black, 15° spot, 3000 K, fixture 5.1 W, 76 lm/W

DALI-2

black, jet black, 46° flood, 4000 K, fixture 5.1 W, 76 lm/W

non DIM

black, jet black, 46° flood, 4000 K, fixture 5.1 W, 76 lm/W

DALI-2

black, jet black, 25° medium, 4000 K, fixture 5.1 W, 77 lm/W

non DIM

black, jet black, 25° medium, 4000 K, fixture 5.1 W, 77 lm/W

DALI-2

black, jet black, 15° spot, 4000 K, fixture 5.1 W, 76 lm/W

non DIM

black, jet black, 15° spot, 4000 K, fixture 5.1 W, 76 lm/W

DALI-2

SASSO 40 round downlight trim 2 lamps

Status

Article number(s)

Type

Dimming

gold, jet black, 46° flood, 2700 K, fixture 5.1 W, 73 lm/W

non DIM

gold, jet black, 46° flood, 2700 K, fixture 5.1 W, 73 lm/W

DALI-2

gold, jet black, 25° medium, 2700 K, fixture 5.1 W, 72 lm/W

non DIM

gold, jet black, 25° medium, 2700 K, fixture 5.1 W, 72 lm/W

DALI-2

gold, jet black, 15° spot, 2700 K, fixture 5.1 W, 70 lm/W

non DIM

gold, jet black, 15° spot, 2700 K, fixture 5.1 W, 70 lm/W

DALI-2

gold, jet black, 46° flood, 3000 K, fixture 5.1 W, 79 lm/W

non DIM

gold, jet black, 46° flood, 3000 K, fixture 5.1 W, 79 lm/W

DALI-2

gold, jet black, 25° medium, 3000 K, fixture 5.1 W, 78 lm/W

non DIM

gold, jet black, 25° medium, 3000 K, fixture 5.1 W, 78 lm/W

DALI-2

gold, jet black, 15° spot, 3000 K, fixture 5.1 W, 76 lm/W

non DIM

gold, jet black, 15° spot, 3000 K, fixture 5.1 W, 76 lm/W

DALI-2

gold, jet black, 46° flood, 4000 K, fixture 5.1 W, 79 lm/W

non DIM

gold, jet black, 46° flood, 4000 K, fixture 5.1 W, 79 lm/W

DALI-2

gold, jet black, 25° medium, 4000 K, fixture 5.1 W, 78 lm/W

non DIM

gold, jet black, 25° medium, 4000 K, fixture 5.1 W, 78 lm/W

DALI-2

gold, jet black, 15° spot, 4000 K, fixture 5.1 W, 76 lm/W

non DIM

gold, jet black, 15° spot, 4000 K, fixture 5.1 W, 76 lm/W

DALI-2

SASSO 40 round downlight trim 2 lamps

Status

Article number(s)

Type

Dimming

matt silver, jet black, 46° flood, 2700 K, fixture 5.1 W, 74 lm/W

non DIM

matt silver, jet black, 46° flood, 2700 K, fixture 5.1 W, 74 lm/W

DALI-2

matt silver, jet black, 25° medium, 2700 K, fixture 5.1 W, 73 lm/W

non DIM

matt silver, jet black, 25° medium, 2700 K, fixture 5.1 W, 73 lm/W

DALI-2

matt silver, jet black, 15° spot, 2700 K, fixture 5.1 W, 71 lm/W

non DIM

matt silver, jet black, 15° spot, 2700 K, fixture 5.1 W, 71 lm/W

DALI-2

matt silver, jet black, 46° flood, 3000 K, fixture 5.1 W, 79 lm/W

non DIM

matt silver, jet black, 46° flood, 3000 K, fixture 5.1 W, 79 lm/W

DALI-2

matt silver, jet black, 25° medium, 3000 K, fixture 5.1 W, 78 lm/W

non DIM

matt silver, jet black, 25° medium, 3000 K, fixture 5.1 W, 78 lm/W

DALI-2

matt silver, jet black, 15° spot, 3000 K, fixture 5.1 W, 77 lm/W

non DIM

matt silver, jet black, 15° spot, 3000 K, fixture 5.1 W, 77 lm/W

DALI-2

matt silver, jet black, 46° flood, 4000 K, fixture 5.1 W, 79 lm/W

non DIM

matt silver, jet black, 46° flood, 4000 K, fixture 5.1 W, 79 lm/W

DALI-2

matt silver, jet black, 25° medium, 4000 K, fixture 5.1 W, 78 lm/W

non DIM

matt silver, jet black, 25° medium, 4000 K, fixture 5.1 W, 78 lm/W

DALI-2

matt silver, jet black, 15° spot, 4000 K, fixture 5.1 W, 77 lm/W

non DIM

matt silver, jet black, 15° spot, 4000 K, fixture 5.1 W, 77 lm/W

DALI-2

SASSO 40 round downlight trim 2 lamps

Status

Article number(s)

Type

Dimming

white, jet black, 46° flood, 2700 K, fixture 5.1 W, 75 lm/W

non DIM

white, jet black, 46° flood, 2700 K, fixture 5.1 W, 75 lm/W

DALI-2

white, jet black, 25° medium, 2700 K, fixture 5.1 W, 74 lm/W

non DIM

white, jet black, 25° medium, 2700 K, fixture 5.1 W, 74 lm/W

DALI-2

white, jet black, 15° spot, 2700 K, fixture 5.1 W, 72 lm/W

non DIM

white, jet black, 15° spot, 2700 K, fixture 5.1 W, 72 lm/W

DALI-2

white, jet black, 46° flood, 3000 K, fixture 5.1 W, 80 lm/W

non DIM

white, jet black, 46° flood, 3000 K, fixture 5.1 W, 80 lm/W

DALI-2

white, jet black, 25° medium, 3000 K, fixture 5.1 W, 79 lm/W

non DIM

white, jet black, 25° medium, 3000 K, fixture 5.1 W, 79 lm/W

DALI-2

white, jet black, 15° spot, 3000 K, fixture 5.1 W, 78 lm/W

non DIM

white, jet black, 15° spot, 3000 K, fixture 5.1 W, 78 lm/W

DALI-2

white, jet black, 46° flood, 4000 K, fixture 5.1 W, 80 lm/W

non DIM

white, jet black, 46° flood, 4000 K, fixture 5.1 W, 80 lm/W

DALI-2

white, jet black, 25° medium, 4000 K, fixture 5.1 W, 79 lm/W

non DIM

white, jet black, 25° medium, 4000 K, fixture 5.1 W, 79 lm/W

DALI-2

white, jet black, 15° spot, 4000 K, fixture 5.1 W, 78 lm/W

non DIM

white, jet black, 15° spot, 4000 K, fixture 5.1 W, 78 lm/W

DALI-2

SASSO 40 round downlight trim 2 lamps

Status

Article number(s)

Type

Dimming

black, traffic white, 46° flood, 2700 K, fixture 5.1 W, 71 lm/W

non DIM

black, traffic white, 46° flood, 2700 K, fixture 5.1 W, 71 lm/W

DALI-2

black, traffic white, 25° medium, 2700 K, fixture 5.1 W, 72 lm/W

non DIM

black, traffic white, 25° medium, 2700 K, fixture 5.1 W, 72 lm/W

DALI-2

black, traffic white, 15° spot, 2700 K, fixture 5.1 W, 70 lm/W

non DIM

black, traffic white, 15° spot, 2700 K, fixture 5.1 W, 70 lm/W

DALI-2

black, traffic white, 46° flood, 3000 K, fixture 5.1 W, 76 lm/W

non DIM

black, traffic white, 46° flood, 3000 K, fixture 5.1 W, 76 lm/W

DALI-2

black, traffic white, 25° medium, 3000 K, fixture 5.1 W, 77 lm/W

non DIM

black, traffic white, 25° medium, 3000 K, fixture 5.1 W, 77 lm/W

DALI-2

black, traffic white, 15° spot, 3000 K, fixture 5.1 W, 76 lm/W

non DIM

black, traffic white, 15° spot, 3000 K, fixture 5.1 W, 76 lm/W

DALI-2

black, traffic white, 46° flood, 4000 K, fixture 5.1 W, 76 lm/W

non DIM

black, traffic white, 46° flood, 4000 K, fixture 5.1 W, 76 lm/W

DALI-2

black, traffic white, 25° medium, 4000 K, fixture 5.1 W, 77 lm/W

non DIM

black, traffic white, 25° medium, 4000 K, fixture 5.1 W, 77 lm/W

DALI-2

black, traffic white, 15° spot, 4000 K, fixture 5.1 W, 76 lm/W

non DIM

black, traffic white, 15° spot, 4000 K, fixture 5.1 W, 76 lm/W

DALI-2

SASSO 40 round downlight trim 2 lamps

Status

Article number(s)

Type

Dimming

gold, traffic white, 46° flood, 2700 K, fixture 5.1 W, 73 lm/W

non DIM

gold, traffic white, 46° flood, 2700 K, fixture 5.1 W, 73 lm/W

DALI-2

gold, traffic white, 25° medium, 2700 K, fixture 5.1 W, 72 lm/W

non DIM

gold, traffic white, 25° medium, 2700 K, fixture 5.1 W, 72 lm/W

DALI-2

gold, traffic white, 15° spot, 2700 K, fixture 5.1 W, 70 lm/W

non DIM

gold, traffic white, 15° spot, 2700 K, fixture 5.1 W, 70 lm/W

DALI-2

gold, traffic white, 46° flood, 3000 K, fixture 5.1 W, 79 lm/W

non DIM

gold, traffic white, 46° flood, 3000 K, fixture 5.1 W, 79 lm/W

DALI-2

gold, traffic white, 25° medium, 3000 K, fixture 5.1 W, 78 lm/W

non DIM

gold, traffic white, 25° medium, 3000 K, fixture 5.1 W, 78 lm/W

DALI-2

gold, traffic white, 15° spot, 3000 K, fixture 5.1 W, 76 lm/W

non DIM

gold, traffic white, 15° spot, 3000 K, fixture 5.1 W, 76 lm/W

DALI-2

gold, traffic white, 25° medium, 4000 K, fixture 5.1 W, 78 lm/W

non DIM

gold, traffic white, 25° medium, 4000 K, fixture 5.1 W, 78 lm/W

DALI-2

gold, traffic white, 15° spot, 4000 K, fixture 5.1 W, 76 lm/W

non DIM

gold, traffic white, 15° spot, 4000 K, fixture 5.1 W, 76 lm/W

DALI-2

Accessories

Converter

article number

power

voltage / frequency

protection class

constant current

POWER SUPPLY

002-90740

10 W

min 50 Hz

max 60 Hz

PC21

POWER SUPPLY

002-90744

10 W

min 50 Hz

max 60 Hz

PC21

200 mA

POWER SUPPLY

002-90752

23 W

min 50 Hz

max 60 Hz

PC21

450 mA

POWER SUPPLY

002-90753

450 mA

Mounting

article number

colour

dimensions

cut out dimensions

MOUNTING SET with trim 2 lamps

048-2898317

traffic white

RAL 9016

length 122 mm

width 60 mm

height 13 mm

0.05 kg

diameter 56 mm

width 114 mm

MOUNTING SET with trim 2 lamps

048-2898318

jet black

RAL 9005

length 122 mm

width 60 mm

height 13 mm

0.05 kg

diameter 56 mm

width 114 mm

All
Electrical
Mounting

Converter

article number

power

voltage / frequency

protection class

constant voltage

constant current

control

POWER SUPPLY

002-90749

200 mA

POWER SUPPLY PREWIRED

002-90749A

200 mA

DALI-2

POWER SUPPLY

002-90750

450 mA

POWER SUPPLY PREWIRED

002-90750A

450 mA

DALI-2

DIN RAIL LED DRIVER

005-6121030

DALI-2

DIN RAIL POWER SUPPLY

005-6520210

160 W

min 50 Hz

max 60 Hz

PC21

48 V

Mounting

article number

colour

MOUNTING TOOL

048-2895918

traffic black

RAL 9017

SASSO 40 round

recessed 2 lamps

Quickinfo

Colour

Mounting set

Simple drawing

Light distribution

Product data & specification documents

Description

Products and codes

Colour

Mounting set

SASSO 40 round adjustable trim 2 lamps

SASSO 40 round adjustable trim 2 lamps

SASSO 40 round adjustable trim 2 lamps

SASSO 40 round adjustable trim 2 lamps

SASSO 40 round adjustable trim 2 lamps

SASSO 40 round adjustable trim 2 lamps

SASSO 40 round adjustable trim 2 lamps

SASSO 40 round adjustable trim 2 lamps

SASSO 40 round adjustable trim 2 lamps

SASSO 40 round adjustable trim 2 lamps

SASSO 40 round adjustable trim 2 lamps

SASSO 40 round adjustable trim 2 lamps

SASSO 40 round adjustable trim 2 lamps

SASSO 40 round adjustable trim 2 lamps

SASSO 40 round adjustable trim 2 lamps

SASSO 40 round adjustable trim 2 lamps

SASSO 40 round downlight trim 2 lamps

SASSO 40 round downlight trim 2 lamps

SASSO 40 round downlight trim 2 lamps

SASSO 40 round downlight trim 2 lamps

SASSO 40 round downlight trim 2 lamps

SASSO 40 round downlight trim 2 lamps

SASSO 40 round downlight trim 2 lamps

SASSO 40 round downlight trim 2 lamps

SASSO 40 round downlight trim 2 lamps

SASSO 40 round downlight trim 2 lamps

SASSO 40 round downlight trim 2 lamps

SASSO 40 round downlight trim 2 lamps

Accessories

Converter

Mounting

Converter

Mounting

Related products
